The 3D PluraView Stereo Monitor is the optimal solution for real 3D-stereo visualization in a wide variety of GEO / GIS areas, such as Photogrammetry, GIS & Mapping, LiDAR, 3D Scanning, for the oil & gas industry, Archeology, BIM & 3D city modeling. As a desktop-monitor the 3D PluraView is plug & play compatible – without special graphics drivers – with stereo software applications from leading manufacturers – e.g. esri, Trimble-INPHO, Hexagon, Agisoft, DAT/EM, Terrasolid, etc. The 3D PluraView monitor enables fatigue-free, stereoscopic work in the highest, flicker-free 3D stereo image quality with resolutions up to 4K, even in daylight office conditions.
The 3D PluraView monitor from Schneider Digital enables professional geospatial users to work comfortably and fatigue-free in all 3D-stereo environments. Innovative beam-splitter technology is the basis for precise, pixel-accurate stereoscopic image analysis with the highest quality up to 4K resolution, even in office daylight conditions. The new monitor has been designed for a wide variety of geospatial applications, such as Photogrammetry, GIS / Mapping, 3D LiDAR, the oil & gas industry, archeology, BIM and 3D city modelling
Designed for professional users: The optimum 3D-Stereo experience for full-time operations
The Schneider Digital 3D PluraView monitors feature optimized beam-splitter technology for the highest quality in stereoscopic rendering on the desktop. The 3D PluraView monitors are ideally suited for all stereo software applications in most major industries. The monitor is the optimal solution for real 3D-stereo visualization in a wide variety of Geospatial enviroments and is certified for over 300 Stereo Software-Applications e.g. ESRI, HEXAGON, TRIMBLE, AGISOFT, etc. Thanks to the innovative established beam-splitter technology the 3D PluraView monitor enables fatigue-free, stereoscopic work in the highest, flicker-free 3D stereo image quality with resolutions up to 4K Resolution @ 10-bit color depth, even in daylight office conditions. As ‘Plug & Play` system the 3D PluraVIew ist easy to install within minutes on all standard Workstations and works with all professional Graphics Cards.
As the market reference system the 3D PluraView Monitor with its innovative and reliable beam-splitter technology is the basis for pixel-precise, stereoscopic 3D image displays, offering the highest stereo-viewing quality possible. Currently, PluraView stereo displays can be configured with screen diagonals of up to 28”, resolutions up to 4K (UHD) and a color depth of 10-bit per pixel. With screen refresh rates of only 1-ms, a blur-free image display for motion videos and smooth stereo image roaming is guaranteed.
Especially with GIS and photogrammetry applications, professional users are faced by the challenge of quickly loading large amounts of data and visualizing these in stereoscopic mode on a 3D-capable system. Professionals who are working daily with high-resolution 3D mesh models, stereo imagery, CAD and GIS data, need a flicker-free, daylight-capable 3D monitor, which allows fatigue-free, stereoscopic interaction all day long.
Schneider Digital has introduced the 3D PluraView family of beam-splitter, passive 3D stereo displays, to meet these exact needs. 3D PluraView monitors are specifically designed for stereoscopic display, interfacing seamlessly to most 3D-capable software applications in industries such as photogrammetry, LiDAR point clouds and CAD – or GIS – based 3D data visualization. Only with cross-polarized, passive stereo filters, can stereo images, intricate CAD, mesh and other surfaces and textures be reproduced down to the smallest detail.
Highest user acceptance thanks to comfortable working in 3D-Stereo
The 3D PluraView monitors promise an extremely comfortable, precise and pixel-accurate work environment. Image analysis is now possible with a maximum resolution of 4K (3840 × 2160) per monitor and an RGB color depth of up to 10-bit. With this solution, all user problems with LCD shutter glasses are a thing of the past. The LCD-based active image separation results in much darker and reduced-contrast stereo images. The low 60Hz frequency of the LCD shutters also strains the eyes and leads to operator fatigue.

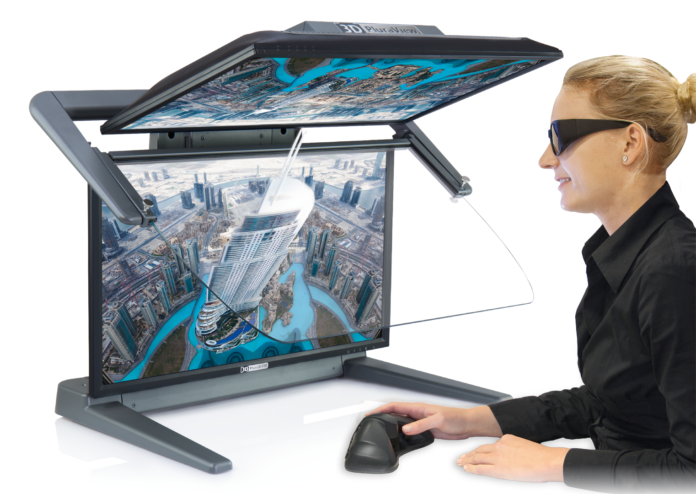

Each 3D PluraView monitor assembly features two screens mounted at a fixed angle above each other. Each screen displays one of the stereo images at full resolution. The two images are combined into a single, cross-polarized display by the centrally mounted beam-splitter mirror, acting as a passive polarization filter. Viewed through lightweight, passively polarized glasses, both images are combined into a full-resolution, flicker-free, brilliantly bright and contrast-rich stereo image. This technology combination represents the optimum 3D stereo-display solution for professional use.
The 3D PluraView system enjoys the highest user satisfaction and user acceptance of all 3D-display systems currently on the market! The central beam-splitter stereo technology has been established since 2005 and with the latest addition of 4K-displays and enhanced 10-bit color depth, it is the current state-of-the-art 3D-display reference.
Wide Product range for every requirement: Two different assembly sizes – three resolutions (Full HD, 2.5K and 4K UHD) – four Screensizes 22”, 24”, 27” and 28” with Tracking
To meet the different requirements of our customers for screen resolution, monitor size and possible desktop space restrictions, we offer the 3D PluraView product family in two different assembly sizes, four monitor sizes and in three different screen resolutions.
Starting with a smaller form-factor for the PluraView system, Full HD (1,920 x 1,080) resolutions are available for the 22” and 24” PluraView screen sizes. Their compact assembly with reduced depth is suitable for smaller desktop sizes and therefore ideal for production offices with multiple workstations in one room.
Our second assembly is designed for 27” and 28” monitors. The 3D PluraView 2.5 model offers a screen diagonal of 27“ at a 2.5K resolution with 2.560 x 1.440 pixels. The 3D PluraView 4K visualizes 3.840 x 2.160 pixels on a screen diagonal of 28“ and is the top model of the PluraView family. The 28” VR PluraView Model is also available as a Desktop Virtual Reality System with an intuitive professional tracking system (Head tracking, balls and ttick). The larger assembly also features an integrated DisplayPort 1.2 screen mirroring card.
3D PluraView Monitors delivers the following main highlights:
- Absolutely Flicker-free longtime established 3D-Stereo Beamsplitter Technology for relaxed 3D operations and continuous, professional use
- Highest brightness with one monitor per stereo channel and each eye – suitable for office daylight conditions
- Ultra high resolution – up to 4K @ 10-bit color depth – for for a precise, pixel-accurate stereoscopic image
- Certified for Photogrammetry and GIS (ESRI, HEXAGON, TRIMBLE, AGISOFT, etc.)
- Wide viewing angle – suitable for group viewings up to 5 people
- Plug & Play System with all leading 3D-Stereo Software Applications for all professional branches: Runs without any driver under Windows /LINUX / macOS with workstations or laptops and compatible with all 3D-Hardware devices e.g. GIS-Measurement Mice, CAD 3D-Controller, passive 3D-Glasses
- 3D PluraView as a advanced professional Replacement of the former PLANAR Beamsplitter Monitors
- VR PluraView with Tracking functionality – Object tracking with trackballs or 3D-Pens – for realistic model interaction and intuitive VR experience
- VR PluraView as a Replacement of the end of life nvidia 3D Vision HMD Goggle-System
- Highest quality with functional, ergonomic design – Made in Germany
